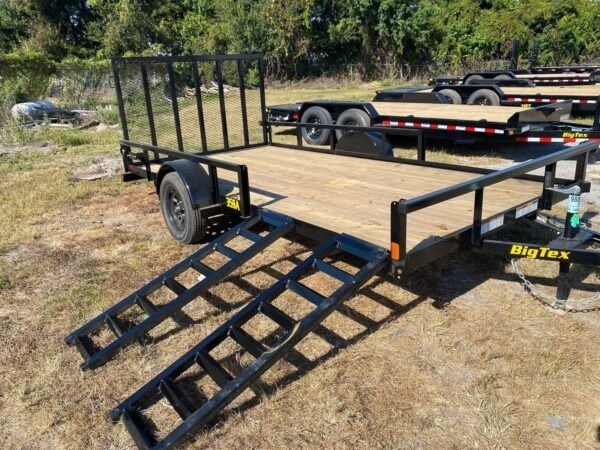

Big Tex 35SA-14BKRSX Single Axle ATV Trailer 83″x14′ Black

14XD Heavy Duty Low Profile Dump Trailer

Description:
Part of the all-new X-Series, the 14XD Heavy Duty Low Profile Dump Trailer is engineered for professional-grade hauling. Built with a seamless 8″ I-beam frame and tongue, it delivers exceptional strength for the heaviest loads. Equipped with a Mega-Sized Toolbox, a Spring-Loaded Swing Arm Tarp, robust board brackets, and an advanced Scissor-Lift Hydraulic System with power-up, power-down, and gravity-down functionality, the 14XD ensures efficiency, durability, and convenience for demanding jobs.

Standard Features:

• Axles: 2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
• Brakes: Forward Self-Adjusting Electric Brakes on All Hubs
• Suspension: Multi-Leaf Spring with Equalizer
• Tongue: 8″ I-Beam (10#), Integral with Frame
• Coupler: Adjustable 2-5/16” 18,000# Demco EZ Latch; Adjustable Pintle in Channel available
• Safety Chains: 3/8″ Grade 70 w/ Safety Latch Hook (2 ea)
• Jack: 12,000# Drop-Leg Jack (Side Wind); 12,000# Elec/Hyd. Jack BY Stillwell™ optional
• Frame: 8″ I-Beam (10#) Cross-Members, 3″ Channel on 16″ Centers
• Floor: 7 Gauge Smooth Steel
• Fenders: 9” x 72” 14 Ga. Diamond Plate Double Square Broke
• Ramps: 6′ Slide-in Ramps with Integrated Ramp Door
• Stake Pockets: Along Both Sides (Quantity Varies by Length)
• Trailer Plug: 7-Way RV Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
• Wiring: Sealed, Modular Cold-Weather Wiring Harness
• Tires: ST235/80 R-16 Load Range G, Oracle; Bolt Pattern 8-Lug Wheels, Black Mod Steel
• Spare Mount: Side Spare Tire Mount
• Paint: Professional Finish w/ Primer; Standard Color Black
• Tie-Downs: (4) 5/8″ D-Rings inside bed for cargo control
• Break-Away Kit: Complete System with Zip Breakaway Cable
• Battery: 12V Deep Cycle Charger, 5A 110V Onboard Battery Charger
• Gate: Rear Combo Gate (Barn Doors & Spreader Gate)
• Power: Ram Self-Contained Scissor Lift with Power Up/Power Down & Gravity Down
• Sides: 24″ Tall (10 Ga) with Formed Channel Supports
• Stabilizers: Rear Stabilizer Stands
• Storage: Full Tongue Toolbox with Locking Lid
• Tarp: Spring-Loaded Swing Arm Tarp
• Top Rail: 3″ x 2″ Rectangular Tubing

Specifications:

• Model: 14XD-14
• Pull Type: Bumperpull
• GVWR: 15,400 lbs
• GAWR (Ea. Axle): 7,000 lbs
• Empty Weight: 4,180 lbs
• Cargo Capacity: 11,220 lbs
• Bed Length: 14′
• Bed Width: 83″
