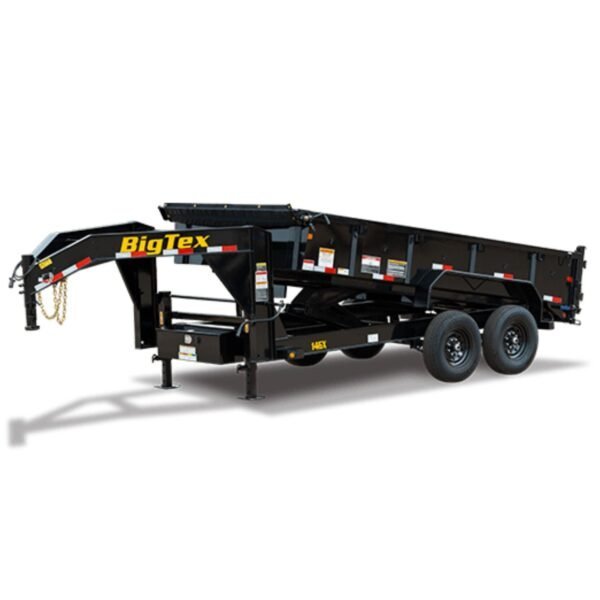

Big Tex Heavy Duty Tandem Axle Gooseneck Dump Trailer | 14GX
$1,499.00
14TL Heavy Duty Tilt Bed Equipment Trailer
Designed for maximum productivity and smooth equipment loading, the 14TL Heavy Duty Tilt Bed Equipment Trailer combines rugged construction with a highly functional tilt deck system. Featuring both a stationary front deck and a hydraulic rear tilt deck, this trailer is built to handle demanding equipment hauling tasks with efficiency and control.
Whether you’re transporting skid steers, tractors, small excavators, or other heavy equipment, the 14TL delivers dependable performance with premium-grade components and smart loading features.
Key Features
- 14,000 lb GVWR
- Up to 10,540 lb cargo capacity
- Hydraulic dampening tilt deck system
- Stationary front deck + rear tilt deck
- 12° tilt angle for easier loading
- 6-inch channel frame construction
- 4-inch drop axles
- 1/4-inch diamond plate knife edge
- Rub rail and stake pockets for cargo securement
- LED recessed lighting
- Heavy-duty adjustable coupler system
- Available in bumper pull and gooseneck models
Efficient Tilt Deck Design
The rear tilt deck uses a hydraulic dampening system with valve control for smoother loading and unloading operations. The EZ pedal locking mechanism provides convenient deck operation while maintaining safety and stability during use.
The integrated diamond plate knife edge and low loading angle help make equipment loading safer and easier.
Heavy-Duty Construction
Built with a rugged 6-inch channel frame and reinforced cross-members, the 14TL is engineered for long-term durability in demanding work environments.
Additional heavy-duty components include:
- Premium 7,000 lb drop axles
- Multi-leaf slipper spring suspension
- Adjustable coupler system
- Removable diamond plate fenders
- Fabricated front stop rail
Versatile Cargo Handling
The trailer includes multiple cargo securement features such as:
- Stake pockets along both sides
- Rub rails
- Six 5/8-inch D-rings
- Optional recessed D-rings
- Adjustable pintle hitch option
These features help safely secure heavy equipment and oversized loads.
Smooth Towing & Reliable Performance
Equipped with:
- Forward self-adjusting electric brakes
- ST235/80 R-16 radial tires
- Sealed modular cold-weather wiring harness
- LED lighting system
The 14TL delivers reliable towing performance and dependable braking under heavy loads.
Available Models
The 14TL is available in multiple lengths and configurations, including bumper pull and gooseneck setups for different hauling needs.
Model Specifications
| Specification | 14TL-22 | 14TL-20GN | 14TL-20 | 14TL-22GN |
|---|---|---|---|---|
| Pull Type | Bumperpull | Gooseneck | Bumperpull | Gooseneck |
| GVWR | 14,000 lbs | 14,000 lbs | 14,000 lbs | 14,000 lbs |
| Empty Weight | 3,660 lbs | 3,460 lbs | 3,460 lbs | 3,660 lbs |
| Cargo Capacity | 10,340 lbs | 10,540 lbs | 10,540 lbs | 10,340 lbs |
| Bed Length | 22 ft | 20 ft | 20 ft | 22 ft |
| Bed Width | 83 in | 83 in | 83 in | 83 in |
| Tilt Deck Width | 75 in | 75 in | 75 in | 75 in |
| Tongue Length | 48-1/2 in | 48-1/2 in | 48-1/2 in | 48-1/2 in |
Ideal For
- Equipment transport
- Construction contractors
- Landscaping professionals
- Tractor hauling
- Skid steer transport
- Farm and ranch applications
The 14TL Heavy Duty Tilt Bed Equipment Trailer combines strength, smooth loading capability, and professional-grade hauling features to help operators move equipment safely and efficiently every day.
