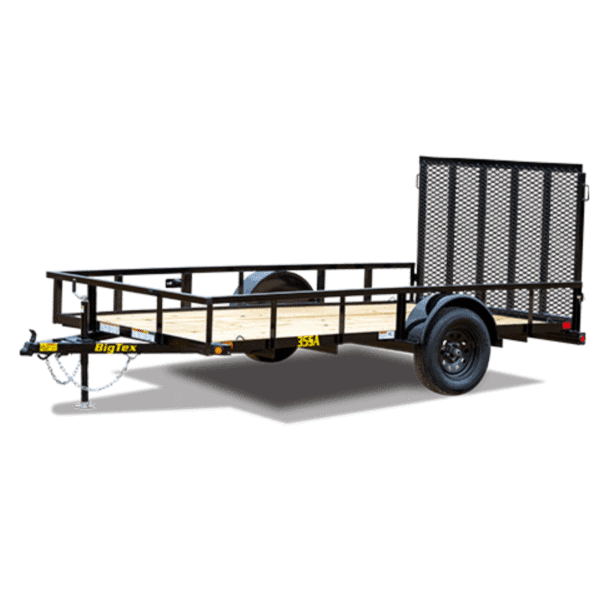

Big Tex Single Axle Utility Trailer | 35SA
$1,499.00
3 sold in last 13 hours
Hurry! Over 13 people have this in their carts
Estimated Delivery: Mon, Jul 06 – Fri, Jul 10
... people are viewing this right now
16TL Super Duty Tilt Bed Equipment Trailer
Upgrade your productivity and versatility with the 16TL Super Duty Tilt Bed Equipment Trailer from stoolby.com. Available in multiple models from 20 ft. to 22 ft., this trailer features a stationary front deck and a rear tilt deck, providing flexible loading options for low-profile equipment. With a 14° tilt deck angle and a 1/4 in. diamond plate knife edge, loading and unloading equipment is quick and efficient. Built with heavy-duty construction and multiple cargo securement points, this trailer is designed for long-term durability and dependable performance.
Standard Features
- 2 – 8,000 lb premium axles with oil bath and Valcrum caps
- Forward self-adjusting electric brakes on both axles
- Torsion axle suspension
- Adjustable 2-5/16 in. Demco EZ Latch coupler
- 3/8 in. Grade 70 safety chains with safety latch hooks
- 12,000 lb drop-leg jack (side wind)
- 8 in. channel frame construction
- 3 in. channel cross-members on 16 in. centers
- 3/16 in. fabricated front stop rail
- APEX fortified lumber floor
- 9 in. x 72 in. 14-gauge diamond plate removable fenders
- Stake pockets along both sides
- 7-way RV trailer plug
- Recessed grommet-mounted LED lighting
- Sealed modular cold-weather wiring harness
- ST215/75 R-17.5 Load Range E radial tires
- 8-bolt wheel pattern
- Hydraulic dampening tilt deck with valve control
- EZ pedal locking mechanism
- Rub rail along both sides
- (6) 5/8 in. D-rings for cargo securement
- Complete breakaway system with Zip™ breakaway cable and charger
- Professional primer finish with standard black paint
Available Options
- Adjustable pintle in channel in place of coupler
- Blackwood Pro rubber infused lumber floor
- 1/8 in. diamond plate steel floor
- Front spare tire mount
- Spare tire upgrade (ST235/80 R-16 LR-G)
- Additional 5/8 in. D-rings
- Recessed floor D-rings (steel floor only)
- Multiple paint color options including red, grey, white, desert tan, jet blue, slime green, implement green, equipment orange, and medium yellow
Tilt Deck Dimensions
- 75 in. wide tilt deck
- 83 in. between fenders
- 1/4 in. diamond plate knife edge
Model Specifications
| Model | 16TL-20 | 16TL-22 | 16TL-20GN | 16TL-22GN |
|---|---|---|---|---|
| Pull Type | Bumperpull | Bumperpull | Bumperpull | Bumperpull |
| GVWR | 17,500 lbs | 17,500 lbs | 17,500 lbs | 17,500 lbs |
| GAWR (Each Axle) | 7,000 lbs | 7,000 lbs | 7,000 lbs | 7,000 lbs |
| Empty Weight | 4,080 lbs | 4,140 lbs | 4,880 lbs | 4,940 lbs |
| Cargo Capacity | 13,420 lbs | 13,360 lbs | 12,620 lbs | 12,560 lbs |
| Bed Length | 20 ft. | 22 ft. | 20 ft. | 22 ft. |
| Bed Width | 83 in. | 83 in. | 83 in. | 83 in. |
| Tongue Length | 47 in. | 47 in. | 47 in. | 47 in. |
